(i)GPS Dielectric Antenna Center Frequency(MHz):1575.42±3 VSWR<1.5:1 Bandwidth(MHz):±5 Impedance(Ω):50 Peak Gain >3dBi Based on 7cm×7cm ground plane Gain Coverage >-4dBi at –90°<0 <+90°(over 75% Volume) Polarization:RHCP (ii)4G LTE Antenna Frequency(MHz):698-960/1710-2170/2500-2700 VSWR <2.0:1 Peak Gain(dBi):2 Max Input power(W):50 Input Impedance(Ω):50 Polarization:Linear (iii)LNA/Filter For GPS LNA Gain (Without Cable) :28 dBi Typical Noise Figure(dB):1.5 Filter Out Band Attenuation (f0=1575.42 MHz) 7dB Min f0+/-20MHz ; 20dB Min f0+/-50MHz; 30dB Min f0+/-100MHz VSWR <2.0:1 DC Voltage(V):2.7/3.0/3.3/5.0/3.0 to 5.0 etc. DC Current(mA):11 Max

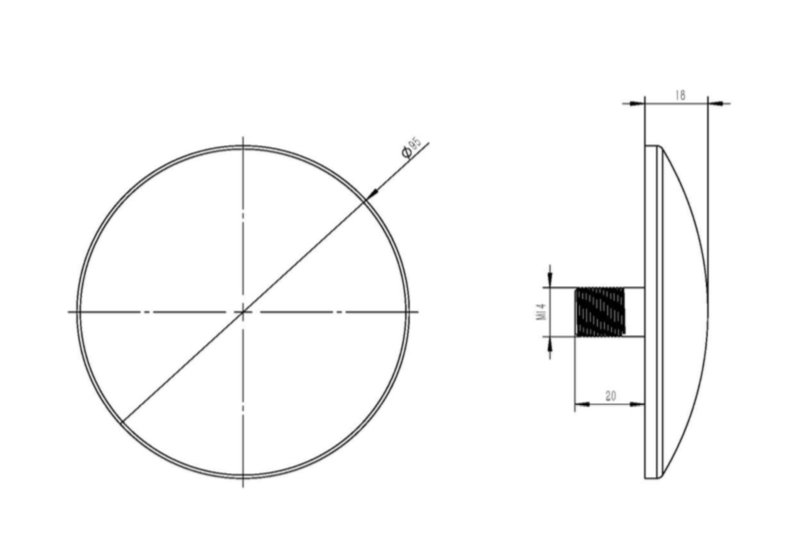

(iv)Mechanical Weight(gram)<240 Size(mm): Φ95x18

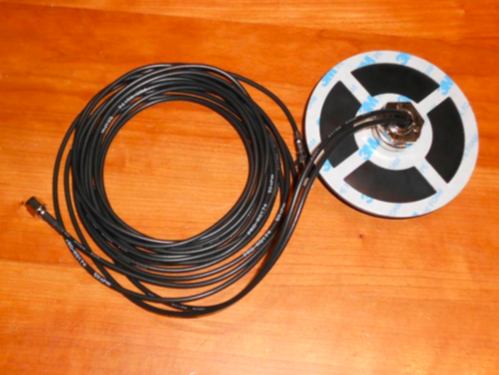

Cable GPS(cm):RG174 5m. 4G(cm):RG174 5m. Connector GPS: SMA male Connector 4G:SMA male rp Mounting:Screw Housing:Black (v)Environmental Working Temp:-40°C~+85°C Storage Temp:-45°C~+85°C Vibration:Sine sweep1g(0-p)10~50~10Hz each axis Humidity:Humidity95%~100%RH Weatherproof:100%Waterproof(IP67)
